Open Single Pair Ethernet

Introduction

The worlds of networking and FPGA design have become increasingly intertwined. Modern FPGAs are now powering everything from high-speed network interfaces to complex packet processing pipelines and industrial automation systems.

Single Pair Ethernet (IEEE 802.3cg 10BASE-T1S) provides a simple, deterministic multidrop bus for distributed embedded systems. It carries data (and optionally power) over a single twisted pair, making it well-suited for industrial, automotive, and edge sensor networks without need of a Switch.

The plan is to start with a reconfigurable 10BASE-T1S MAC driving an external PHY and finally move the digital PHY into the FPGA.

Roadmap

Step 0 :

Create a small, open-hardware PMOD that exposes a Microchip LAN8670 (10BASE-T1S PHY) over a standard 12-pin PMOD header.

This module lets any FPGA or MCU board with a PMOD (or a simple adapter) drive a 10BASE-T1S link via RMII + MDIO. It serves as the practical hardware foundation before the FPGA-based Step 1.

PMOD header
   │
   ├── RMII (TXD0/1, TXEN, RXD0/1, CRS_DV, CLK50, RST_N)
   ├── MDIO / MDC
   └── 3.3 V / GND
        │
        ▼
   LAN8670 (RMII mode)
        │
        ▼
   Bus Interface Network interfacing the PHY IC to the MDI connector in 10BASE-T1S
        │
        ▼
   2-pin screw terminal (or SPE connector)

Step 1 : MAC with External PHY (10BaseT1S PHY from Microchip LAN8670)

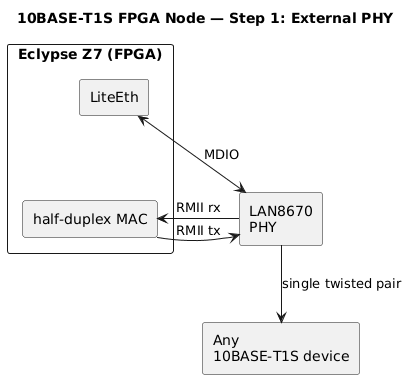

Step 1 roadmap

Using LiteEth implement half-duplex MAC which already supports MDIO and RMII for LAN8670 PHY.

FPGA (any LiteX board)
  ├── LiteEthPHYRMII
  ├── LiteEthPHYMDIO
  └── Small software routine  ← to writes PLCA registers
         │
         └── RMII + MDIO wires → connect to LAN8670 PMOD

Step 2 : digital PHY (PCS + PLCA) inside FPGA

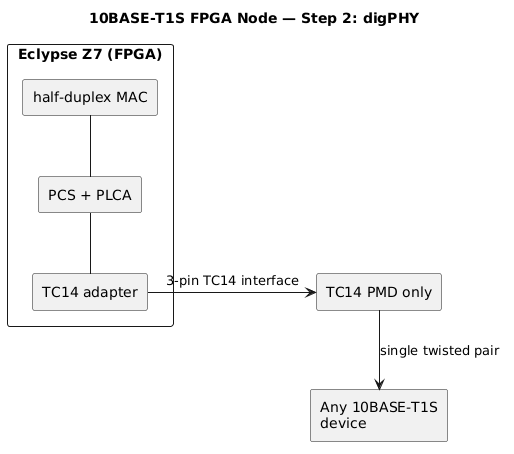

Step 2 roadmap

Implement DigPHY using same MAC but with new RTL implementing Clause 147 PCS, Clause 148 PLCA, and interfacing with the OPEN Alliance TC14 3-pin interface. The external part shrinks to a minimal external analog PMD over the 3-pin TC14 interface(e.g. TJA1410) which is Vendor-agnostic.

┌─────────────────────────────────────────┐
│  MAC (LiteEth )                         │
│  ↑↓                                     │
│  Clause 148 PLCA                        │  ← schedules who may transmit
│  ↑↓                                     │
│  Clause 147 PCS                         │  ← encodes/decodes symbols
│  ↑↓                                     │
│  TC14 3-pin interface                   │  ← digital link to analog chip
│  ↑↓                                     │
│  TC14-compliant PMD (TJA1410, etc.)     │  ← analog front-end + cable
└─────────────────────────────────────────┘

Advantages

To make SPE Ethernet over twisted pair cable accessible to FPGAs for deterministic workloads.
Step 2 adds small, cheap, analog transceiver replacing expensive Ethernet PHY as shown below :

Step 1 (external PHY)          Step 2 (digPHY)
---------------------          ----------------
FPGA: MAC + MDIO               FPGA: MAC + PCS + PLCA + TC14 adapter
       │                              │
       │ RMII                         │ 3-pin TC14
       ▼                              ▼
LAN8670 (full PHY)             TC14 PMD only (analog)
       │                              │
       └──── single pair ─────────────┘
