Phase 2A — SWD Protocol State Machine: Implementation & Verification

Status: implemented and sim-verified.

Tasks :

• Define the internal 2A↔2B transaction seam first: SwdDpCmd/SwdDpRsp/SwdDpWrite flows so 2A is verifiable standalone against a stubbed DP
• Implement 2-wire physical interface on the target: swclk input (driven by probe) + swdio as i/o/oe (tristate/IOBUF at SoC level)
• Implement packet request parser — 8-bit frame: Start(1), APnDP(1), RnW(1), A2:3, Parity(1), Stop(1), Park(1)
• Implement ACK response generator — 3-bit ACK[2:0]: OK(0b001), WAIT(0b010), FAULT(0b100) (ADIv6.0 Table B4-1). Transmitted LSB-first like all SWD data, so OK appears on the wire as 1,0,0 — do not confuse wire order with the register value
• Implement turnaround period management — direction change on SWDIO between host-driven and target-driven phases (Sec B4.1.3); fixed at 1 cycle (DLCR.TURNROUND unsupported)
• Implement WDATA phase — 33-bit host→target: WDATA[0:31] + parity (for write operations after OK ACK)
• Implement RDATA phase — 33-bit target→host: RDATA[0:31] + parity (for read operations after OK ACK)
• Implement even parity checker/generator — separate parity on packet request (4 bits: APnDP, RnW, A[2:3]) and data transfer (32 bits) (Sec B4.1.6)
• Implement LSB-first bit ordering for all data values (Sec B4.1.5)
• Accept idle cycles between transactions (Sec B4.1.4); back-to-back with zero idle also works
• Implement line reset detection — 50+ clock cycles with SWDIO HIGH, followed by 2+ idle cycles (Sec B4.3.3)
• Start with SWD protocol version 1 (point-to-point); version 2 multi-drop support is optional; no ORUNDETECT

Code Repository :

Update submodules in pythondata-cpu-vexriscv_smp to below :

• SpinalHdl - https://github.com/disdi/SpinalHDL/tree/phase2a
• VexRiscv - https://github.com/disdi/VexRiscv/tree/phase2a

EXT = pythondata-cpu-vexriscv-smp/pythondata_cpu_vexriscv_smp/verilog/ext. EXT/VexRiscv/build.sbt compiles EXT/SpinalHDL from source, so the RTL and testbench build in one sbt project with no LiteX involvement.

1. What is implemented — SwdPhy

SwdPhy is the ARM ADI SW-DP line layer (ADIv6.0 §B4): it speaks the 2-wire protocol and terminates in a decoded-transaction seam. It contains no DP registers (Phase 2B) and no DebugBus bridge (Phase 2C).

1.1 I/O

swdio.i  : in  Bool   -- SWDIO as driven by the probe
swdio.o  : out Bool   -- SWDIO value when the target drives
swdio.oe : out Bool   -- target output enable
dp.cmd   : master Flow(SwdDpCmd)    -- decoded request        (2A -> 2B)
dp.rsp   : slave  Flow(SwdDpRsp)    -- ACK + read data        (2B -> 2A)
dp.wr    : master Flow(SwdDpWrite)  -- write commit           (2A -> 2B)

• Clock = SWCLK. The component's implicit clock domain is the probe-driven SWCLK. The target samples swdio.i and updates swdio.o/swdio.oe on the rising edge, matching the OpenOCD bitbang model (host sets data while SWCLK is low, samples target data while low).
• No inout. The tristate split (i/o/oe) is required because the cluster is a Verilog black box in LiteX.

1.2 The 2A↔2B seam (three flows)

A wire-protocol fact shapes the seam: a write's ACK is sent before the 33-bit WDATA phase, so write data cannot ride in the request.

The response is latched into a hold register on first sight (rsp.valid may be combinational off cmd or held continuously); ACK and RDATA are driven from the latched copy for the rest of the frame.

1.3 Frame timing (rising-edge numbering)

Request bits are sampled at edges e1..e8 (start, APnDP, RnW, A2, A3, parity, stop, park — LSB first). cmd fires at e8.

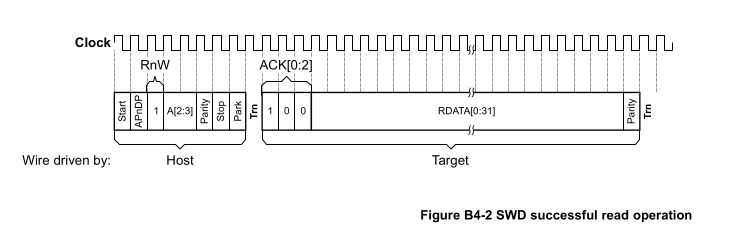

Read, ACK=OK (one turnaround each way, target keeps the line between ACK and RDATA):

e1..e8   host request          (target oe=0)
e9       turnaround            -> target drives ACK[0] at e9
e9..e11  ACK[0..2]
e12..e43 RDATA[0..31]          (from rsp.rdata, LSB first)
e44      even parity of RDATA
e45      release (oe -> 0)     turnaround back to host

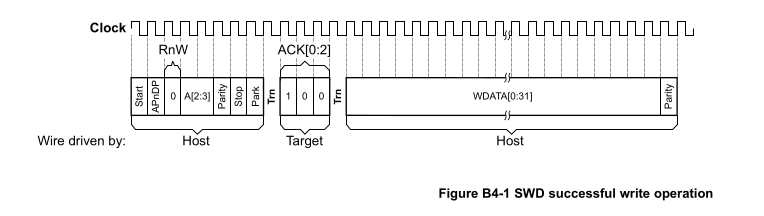

Write, ACK=OK (two turnarounds around the ACK — the bug the tests caught: sampling one edge early captures the turnaround as data bit 0):

e1..e8   host request
e9       turnaround            -> target drives ACK[0]
e9..e11  ACK[0..2]
e12      release (oe -> 0)     \  second turnaround: host takes the line,
e13      turnaround bit period /  drives its first WDATA bit after it
e14..e45 WDATA[0..31]          sampled LSB first into a shift register
e46      parity bit            -> dp.wr fires with data + parityOk verdict

WAIT/FAULT (either direction): the data phase is skipped — after ACK[2] the target releases immediately and returns to idle. (No ORUNDETECT support, so this is unconditional.)

1.4 FSM

States: IDLE → HEADER → ACK → {READ_DATA | WR_TRN → WRITE_DATA | RELEASE} → IDLE, plus ERROR and RESET_WAIT (power-up init is RESET_WAIT, so the target stays quiet until the line is seen low once).

• Protocol error (request parity, stop≠0, park≠1): enter ERROR — the target stops driving and ignores all traffic until line reset (ADIv6.0 §B4.2.5).
• Line reset detector (independent of the FSM): a saturating counter of consecutive swdio.i == 1 samples while the target is not driving; at 50 it forces RESET_WAIT from any state (including ERROR), which falls to IDLE on the first low (idle) cycle. The counter is frozen/cleared while oe=1 so target-driven phases can't fake a reset.

1.4.1 Target state machine for one frame (implementation-oriented)

A practical encoding of Section B4.1–B4.2 from the specification for a single transaction on the target.

This section has two layers:

1. §1.4.2 abstract diagram — phase names aligned with ADI figures (includes TRN_H2T and optional OVERRUN_DATA).
2. §1.4.3–§1.4.5 Phase 2A SwdPhy — how that diagram maps onto the RTL enum and transitions in DebugTransportModuleSwd.scala (case class SwdPhy).

1.4.2 Abstract one-frame FSM (spec-oriented)

1.4.3 State inventory — diagram §1.4.2 ↔ RTL

1.4.4 Transition mapping (diagram → RTL)

IDLE → HEADER — Start bit = 1

Start is not stored in hdr; it only opens the header window. Remaining bits are shifted in HEADER.

HEADER → ERROR or valid exit

On park edge (cnt === 6), hdr holds APnDP…Stop and dio is Park:

• Fail → ERROR (silent until line reset).
• Pass → cmdValid pulse (SwdDpCmd: apNdp, rnw, addr) and state := ACK
  (“cmd accepted” on the diagram’s park edge).

Where is diagram TRN_H2T?

There is no TRN_H2T state. Comment in RTL: “next cycle is the turnaround” after park, then ACK both:

1. owns the host→target turnaround cycle (from the host’s view), and
2. drives the three ACK bits.

So diagram TRN_H2T + ACK collapse into RTL ACK with cnt = 0,1,2. Same wire timing as Fig B4-1/B4-2; one fewer named state.

ACK → … after three ACK bits (cnt === 2)

ACK value comes from the 2B seam, not sticky logic inside 2A:

• io.dp.rsp → latched in rspHold when valid
• ackNow = Mux(rsp.valid, rsp.ack, rspHold.ack)
• Encoded LSB-first on the wire: OK=001, WAIT=010, FAULT=100

Read path — READ_DATA → RELEASE → IDLE (Fig B4-2)

• 32 data bits LSB-first from rspHold.rdata, then even parity (xorR).
• No turnaround between ACK and RDATA (target keeps oe=1).
• RELEASE: oDrive := False, then IDLE (trailing Trn / release).

Write path — WR_TRN → WRITE_DATA → IDLE (Fig B4-1)

• WR_TRN: two cycles with oe=0 (cnt 0 then 1) = second turnaround.
• WRITE_DATA: shift in 32 bits + sample parity; fire dp.wr with data and parityOk.
• WDATA parity fail → parityOk = false (WDATAERR material for 2B), not protocol error.
• Return direct WRITE_DATA → IDLE (no RELEASE): host already owns the line. Diagram §1.4.2 also uses WRITE_DATA --> IDLE.

ERROR and line reset

Line reset is orthogonal (overrides any state): ≥50 consecutive highs on swdio.i while !oDrive; counter frozen/cleared while target drives so ACK/RDATA cannot fake a reset.

RESET_WAIT is an RTL-only gate so the target does not accept Start until the line has gone idle after the reset burst. Diagram §1.4.2 draws a direct ERROR → IDLE; recovery contract is the same.

1.4.5 Side-by-side graph

Diagram §1.4.2 (abstract)                 SwdPhy RTL
───────────────────────                 ──────────

[*] → IDLE                              RESET_WAIT → IDLE  (after first low)
        │                                      │
        │ Start=1                              │ dio=1
        ▼                                      ▼
     HEADER ──bad──► ERROR                  HEADER ──bad──► ERROR
        │                                      │
        │ good park                            │ good park (+ cmd pulse)
        ▼                                      ▼
    TRN_H2T  ─────────────────────────────►  (implicit; first ACK cycle)
        │                                      │
        ▼                                      ▼
       ACK ──OK∧R──► READ_DATA ──► RELEASE    ACK ──OK∧R──► READ_DATA ──► RELEASE
        │                 │                     │                 │
        │ OK∧W            └────────► IDLE       │ OK∧W            └────────► IDLE
        ▼                                      ▼
     WR_TRN ──► WRITE_DATA ──► IDLE         WR_TRN ──► WRITE_DATA ──► IDLE
        │                                      │
        │ ≠OK (no overrun)                     │ ≠OK
        ▼                                      ▼
     RELEASE ──► IDLE                        RELEASE ──► IDLE
        │
        │ ≠OK ∧ ORUNDETECT
        ▼
   OVERRUN_DATA ──► IDLE                   (not implemented)

  ERROR ──line reset──► IDLE               ERROR ──line reset──► RESET_WAIT ──low──► IDLE
                                           (line reset also from any other state)

2. How the testbench works — DebugSwdTest

2.1 The bench is the probe

SWCLK is the DUT clock, and the bench owns it: no forkStimulus — every SWCLK cycle is one call to step(bit):

fallingEdge(); set swdio.i = bit;      // host updates while SWCLK low
sample (swdio.o, swdio.oe);            // host samples while SWCLK low
risingEdge();                          // target samples/updates

This reproduces OpenOCD's bitbang_swd_exchange exactly: a host-driven bit is sampled by the target at the rising edge ending its cycle; a target-driven bit read in cycle k is the value the target registered at edge k−1. All multi-bit values are sent/collected LSB first. step returns (o, oe), so every helper can assert drive/release behavior per cycle.

2.2 Always-ready stub DP

The DP behind the seam is a stub programmed by two vars (stubAck, stubRdata) and observed through two queues (cmds — decoded requests, wrs — write commits with the parity verdict). A forked thread runs every sampling:

• holds rsp.valid true continuously with the programmed ack/rdata, and
• records cmd/wr pulses into the queues.

The always-ready shape is deliberate: the ADI contract requires the DP to answer within the turnaround cycle. An earlier stub that reacted to cmd.valid from a sim thread arrived one clock late nondeterministically (SpinalSim thread-scheduling race) and produced flaky all-zero ACKs — the always-valid response is both race-free and the honest model of the combinational 2B register file.

2.3 Transaction helpers (assertions built in)

• header(...) — sends the 8-bit request; can inject flipParity / badStop / badPark; asserts the target never drives during the request.
• readAck() — collects ACK[0..2]; asserts oe on all three bits.
• transactRead(...) — request → trn → ACK; on OK collects 33 target bits asserting oe throughout, recomputes and checks even parity, then asserts release on the trailing turnaround. On WAIT/FAULT asserts the very next cycle is undriven (data phase skipped).
• transactWrite(...) — request → trn → ACK; on OK asserts release for the second turnaround, then drives 33 bits (optionally with flipDataParity). On WAIT/FAULT same skip assertion as reads.
• lineReset() — 52 high cycles + 2 idle; idle(n) / ones(n) primitives.

Each test runs in a fresh sim (compiled.doSim) with reset applied, the stub forked, and 4 idle cycles before the body.

3. What each test verifies

Embedded in every test via the helpers: turnaround positions (oe window), LSB-first ordering, and the request-phase no-drive rule.
