Phase 2B — SW-DP Register File: Implementation & Verification

Status: implemented and sim-verified (Jul 2026)

Tasks:

• Implement DPIDR register (DP read, A[3:2]=0b00) — read-only device ID with manufacturer, version, min/revision fields
• Implement CTRL/STAT register (DP read/write, A[3:2]=0b01, SELECT.DPBANKSEL=0x0) — sticky error flags: STICKYERR, STICKYCMP, STICKYORUN, WDATAERR; power control: CDBGPWRUPREQ/ACK, CSYSPWRUPREQ/ACK; ORUNDETECT enable
• Implement SELECT register (DP write, A[3:2]=0b10) — DPBANKSEL (4 bits) + ADDR (AP address selection)
• Implement RDBUFF register (DP read, A[3:2]=0b11) — read buffer for previous AP read result
• Implement ABORT register (DP write, A[3:2]=0b00) — DAPABORT, STKCMPCLR, STKERRCLR, WDERRCLR, ORUNERRCLR
• Implement sticky error handling — FAULT response when any sticky flag is set; errors cleared only via ABORT register (Sec B1.2)
• Implement WAIT response logic — issued when AP/DP access is outstanding or AP read result not yet available (Sec B4.2.3)
• Consume SwdDpWrite.parityOk as WDATAERR sticky material (line-layer protocol error / line reset already handled in Phase 2A)

Code Repository :

Update submodules in pythondata-cpu-vexriscv_smp to below :

• SpinalHdl - https://github.com/disdi/SpinalHDL/tree/phase2b
• VexRiscv - https://github.com/disdi/VexRiscv/tree/phase2b

EXT = pythondata-cpu-vexriscv-smp/pythondata_cpu_vexriscv_smp/verilog/ext. Still zero LiteX involvement.

1. What is implemented

1.1 SwdDp — the ADI SW-DP register file

SwdDp sits behind the Phase 2A seam (SwdDpCmd/SwdDpRsp/SwdDpWrite, consumed as slave flows) and exposes a new AP seam toward Phase 2C:

ap.cmd : master Flow(SwdApCmd)   -- rnw, addr = A[3:2], apSel = SELECT[31:24], wdata
ap.rsp : slave  Flow(SwdApRsp)   -- error, data (completion; test-controlled latency)

SwdPhyDp assembles SwdPhy + SwdDp and is the step-1b DUT: SWD pins on one side, AP seam on the other.

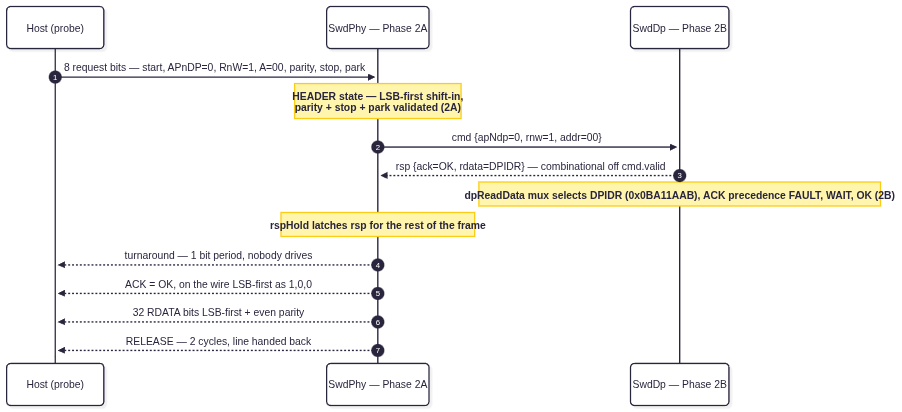

1.2 DP register map (SWD A[3:2] encoding)

CTRL/STAT implemented bits: ORUNDETECT[0] (stored only), STICKYORUN[1], STICKYCMP[4], STICKYERR[5], WDATAERR[7], CDBGPWRUPREQ/ACK[28/29], CSYSPWRUPREQ/ACK[30/31] — the ACKs mirror the REQs. All other bits read as zero.

The DPIDR default has a non-ARM DESIGNER field ([11:1] = 0x555, bit0 = 1, DPv1) — a deliberate placeholder to be replaced per the identification rules before any host-tool integration.

1.3 ACK policy (the WAIT/FAULT generation deferred from 2A)

Decided combinationally off the registered cmd pulse, so the answer lands within the turnaround as the 2A contract requires:

FAULT takes precedence over WAIT.

1.4 Posted AP reads, write commit, stickies

• AP read (ACK=OK): answered immediately from rdBuffer (posted semantics — the previous result), while the new access is launched on ap.cmd. Completion loads rdBuffer; RDBUFF/RESEND then return it without launching anything.
• AP write (ACK=OK): launched only at the WDATA commit (SwdDpWrite with parityOk), carrying the data. Busy until completion.
• STICKYERR: set by a completion with error=1 (the completion's data is discarded).
• WDATAERR: set when the WDATA phase fails parity — the commit is dropped (DP register writes and AP writes alike). Not a line-level protocol error; no line reset needed.
• DAPABORT: clears busy and marks the in-flight completion to be discarded when it eventually arrives, so a stale response cannot corrupt rdBuffer.

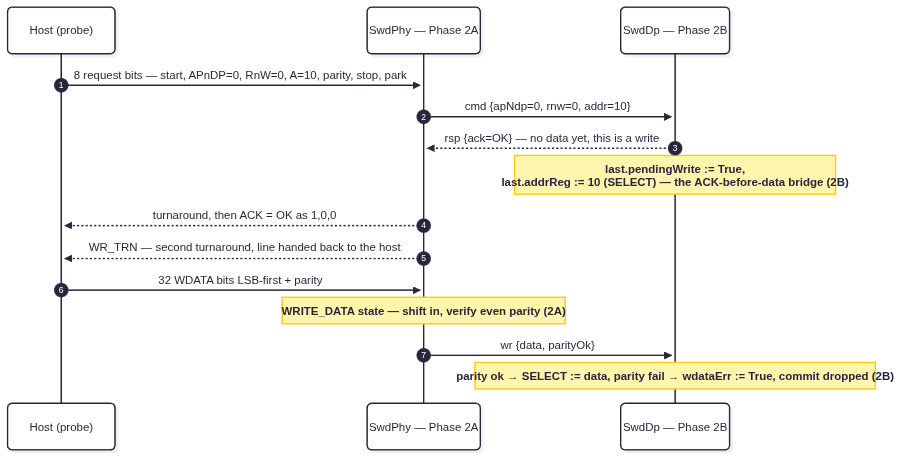

• DP writes commit at the WDATA phase too: the DP remembers the last OK-acked write target (last.pendingWrite) from the request; WAIT/FAULT frames produce no commit (2A skips their data phase), so a gated write can never take effect.

1.5 Graphical model — spec intent vs RTL (side-by-side, as in Phase2A.md §1.4)

Phase 2B is not a per-frame FSM like SwdPhy — it is a register file plus an access decision made once per request and a small amount of persistent state (stickies, busy, read buffer, pending-write). The diagrams therefore show the decision/dataflow rather than wire states.

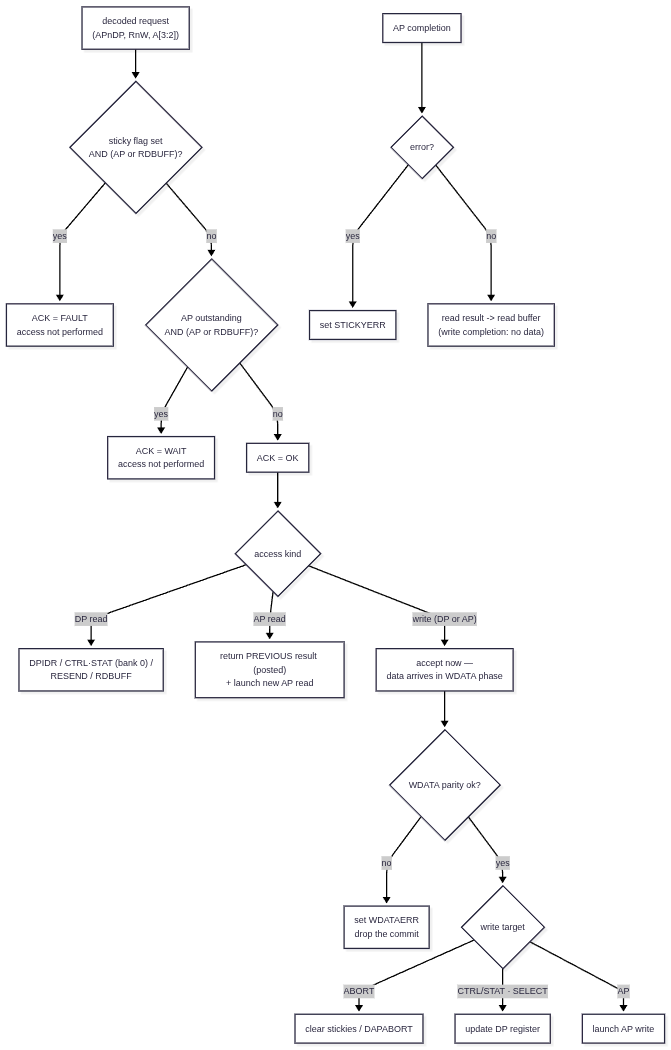

1.5.1 Abstract model (ADIv5.2 §B4.2 behavior)

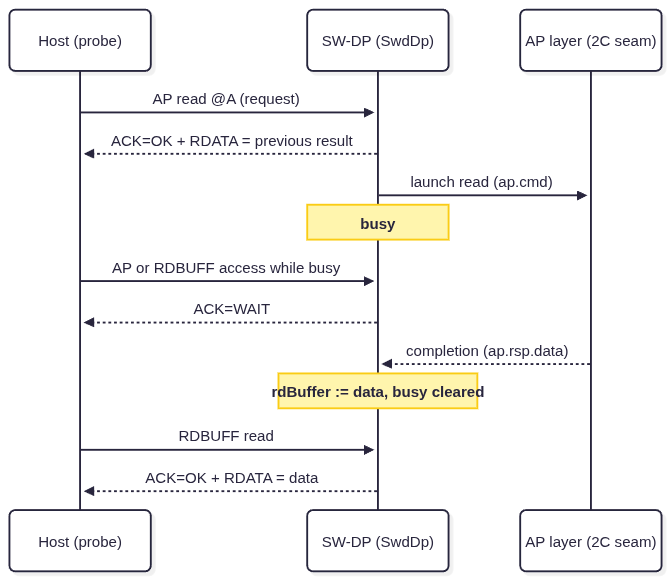

The most 2B-specific behavior — the posted AP read — as a sequence:

1.5.2 SwdDp RTL — the same flow in signals

Source: spinal.lib.cpu.riscv.debug.SwdDp (three concurrent paths: request, WDATA commit, AP completion — no FSM, one decision per cmd pulse).

1.5.3 Element inventory — abstract ↔ RTL

1.5.4 Side-by-side graph

Abstract (ADIv5.2 B4.2)                        SwdDp RTL
───────────────────────                        ─────────
request ──sticky?(AP/RDBUFF)──► FAULT          cmd.valid ──anySticky && gated──► ack=FAULT
   │ no                                             │
   ├────busy?(AP/RDBUFF)──────► WAIT                ├──apBusy && gated──────────► ack=WAIT
   │ no                                             │
   ▼                                                ▼
  OK ──DP read──► DPIDR/CTRL·STAT/                ack=OK ── !apNdp && rnw ──► dpReadData mux
   │              RESEND/RDBUFF                     │
   ├──AP read──► previous result                    ├── apRdFire ──► rdata=rdBuffer,
   │             + launch new read                  │                ap.cmd, apBusy:=1
   │                                                │
   └──write───► ACK now, data later                 └── last.pendingWrite := True
                      │                                            │
             WDATA parity ok?                            wr.valid: parityOk?
              no  → WDATAERR, drop                        no  → wdataErr := True
              yes → ABORT / register /                    yes → ABORT/CTRL·STAT/SELECT
                    AP write launch                             or apWrFire ──► ap.cmd

completion ── error ──► STICKYERR              ap.rsp.valid ── error ──► stickyErr := 1
           └─ data  ──► read buffer                         └─ apWasRead ──► rdBuffer := data
                                               (apDiscard: DAPABORT'd completion dropped)

1.5.5 Match / difference summary

One-sentence takeaway: §1.5.1 is the ADI access contract; SwdDp implements it as one combinational decision per request plus three concurrent signal paths (request / commit / completion), with last.* bridging the ACK-before-data gap that defines SWD writes.

1.6 Scope limits (deliberate)

ORUNDETECT is stored but overrun detection is not implemented — STICKYORUN and STICKYCMP are never set by hardware, only ABORT-clearable · CTRL/STAT banks other than 0 (DLCR etc.) are RAZ/WI · TARGETSEL is v2 and ignored · power-up ACKs mirror REQs rather than modeling a power controller.

2. Testbench changes

2.1 Shared driver extraction

The probe-side bit-bang logic (step, header, readAck, transactRead, transactWrite, lineReset, with all embedded protocol assertions) moved from the 1a suite into SwdSimDriver.scala (SwdHostDriver, SwdAckSim). DebugSwdTest delegates to it with its 9 test bodies unchanged — proven by the suites running together (18/18). Step 2 will reuse the same driver against the full transport + DebugModule.

2.2 The stub moves back one layer

Exactly as the step-1b plan prescribes: the always-ready DP stub is gone — the real SwdDp answers within the turnaround by construction (combinational response). The test harness now stubs the AP side:

• an observer thread records every ap.cmd fire into a queue ((rnw, addr, wdata));
• apComplete(data, error) delivers a completion on ap.rsp for exactly one SWCLK cycle — completions are test-controlled, which is what makes posted-read ordering and WAIT-while-busy directly testable (the AP simply doesn't respond until the test says so).

Sugar wrappers keep tests readable: dpRead/dpWrite/apRead/apWrite map to driver transactions with APnDP set accordingly.

3. What each test verifies

Everything from Phase 2A (turnaround positions, LSB-first, parity, line reset, protocol-error silence) is still enforced on every transaction by the shared driver's embedded assertions — now exercised against the real DP.

4. Verification

cd ~/fpga/pythondata-cpu-vexriscv-smp/pythondata_cpu_vexriscv_smp/verilog/ext/VexRiscv
sbt -batch "testOnly vexriscv.DebugSwdTest vexriscv.DebugSwdDpTest"
# expect: Tests: succeeded 18, failed 0, canceled 0, ignored 0, pending 0
