Phase 2C — DMI Gateway, Clock Crossing & DebugModule Integration

Status: implemented and sim-verified.

Tasks:

Map AP read/write operations to DebugBus.cmd (same DebugCmd interface used by JTAG DTM)
Implement AP address decoding — translate SELECT.ADDR + A[3:2] to DMI address for DebugBus.cmd.address
Implement posted AP reads — first AP read returns UNKNOWN data; result available on next AP read or RDBUFF read (Sec B4.2.2)
Wire DebugBus.rsp to RDATA output and ACK generation
Handle cross-clock-domain between SWD clock (SWCLK) and debug clock domain (reuse ccToggle pattern from JTAG DTM)
Implement WAIT response when DebugBus.cmd is not ready (DM busy)
Implement FAULT response when DebugBus.rsp.error is set

Code Repository :

pythondata-cpu-vexriscv_smp - https://github.com/disdi/pythondata-cpu-vexriscv_smp/tree/phase2c

Update submodules in pythondata-cpu-vexriscv_smp to below :

SpinalHdl - https://github.com/disdi/SpinalHDL/tree/phase2c
VexRiscv - https://github.com/disdi/VexRiscv/tree/phase2c

Artifact	Path
RTL (`SwdDmiGateway`, `DebugTransportModuleSwd`)	`EXT/SpinalHDL/lib/src/main/scala/spinal/lib/cpu/riscv/debug/DebugTransportModuleSwd.scala` (same file as 2A/2B)
Fiber hook (`withSwdTransport()`)	`EXT/SpinalHDL/lib/src/main/scala/spinal/lib/cpu/riscv/debug/DebugModuleFiber.scala`
Testbench (incl. `SwdDmTestTop`)	`EXT/VexRiscv/src/test/scala/vexriscv/DebugSwdDmTest.scala`
Run	`cd EXT/VexRiscv && sbt -batch "testOnly vexriscv.DebugSwdDmTest"` (all: `"testOnly vexriscv.DebugSwdTest vexriscv.DebugSwdDpTest vexriscv.DebugSwdDmTest"`)

EXT = pythondata-cpu-vexriscv-smp/pythondata_cpu_vexriscv_smp/verilog/ext. Still zero LiteX involvement.

1. What is implemented

1.1 `SwdDmiGateway` — the RISC-V DMI gateway AP

Sits behind the 2B AP seam (SwdApCmd/SwdApRsp) and drives a DebugBus master — the same DebugCmd/DebugRsp interface the JTAG DTM produces, which is the whole point of the transport-agnostic design.

AP `A[3:2]`	Register	Access	Behavior
`00`	`AP_IDR`	RO	identification constant (default `0x74726976` "triv") — completes locally in 1 SWCLK cycle
`01`	`DMI_ADDR`	RW	latches the 7-bit DMI word address; readable back — local
`10`	`DMI_DATA`	RW	performs the `DebugBus` transaction at `DMI_ADDR` (RnW from the SWD packet) — crosses domains
`11`	`POSTED_READ`	RO	last completed DMI read result (RDBUFF semantics) — local

Writes to RO registers complete OK with no effect. SELECT.APSEL is not decoded (single-AP design). AP reads launch at the request (posted, per 2B); AP writes launch at the WDATA commit carrying the data.

1.2 Clock crossing — the JTAG DTM pattern, reused

The gateway is an Area with the same two-domain shape as DebugTransportModuleJtag:

cmd (SWCLK → debug): dmiCmd.ccToggle(...).toStream.m2sPipe(crossClockData = true, holdPayload = true) → bus.cmd. Stream backpressure from a busy DM simply extends the in-flight window — the DP's WAIT logic (2B) covers it.
rsp (debug → SWCLK): bus.rsp.ccToggle(..., withOutputBufferedReset = false) — the flag matters: the SWCLK domain is BOOT-reset (a 2-wire interface has no reset pin; line reset is the protocol-level reset), and a buffered reset cannot be synthesized into a BOOT domain (SpinalHDL asserts). Pop-side synchronizers boot-init instead.
Solicited-completion gating (dmiPending here, apBusy in 2B): only a response to an in-flight access completes anything.

The DM responds on DebugBus.rsp for both reads and writes (DebugBusSlaveFactory stages every cmd.fire), so AP writes complete on the crossed response — no self-acknowledgment needed.

1.3 `DebugTransportModuleSwd` — the full transport

SWD pins → SwdPhy (2A) → SwdDp (2B) → SwdDmiGateway (2C) → DebugBus. The SWD side elaborates under ClockDomain(swclk, resetKind = BOOT); the DebugBus side under the provided debugCd. This is the SWD counterpart of DebugTransportModuleJtagTap.

DebugModuleFiber.withSwdTransport(dpidr, apIdr) instantiates it alongside withJtagTap() — same one-transport-per-build rule (direct io.ctrl connection, no arbitration).

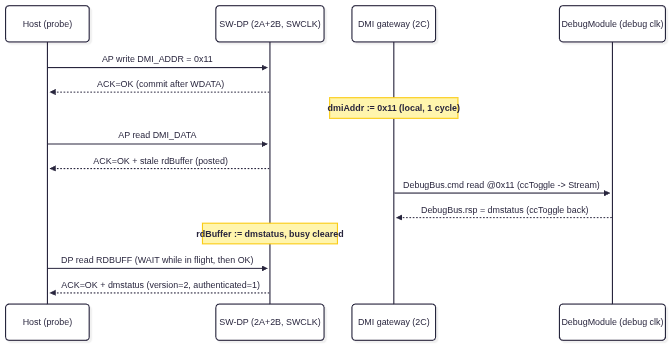

1.4 End-to-end dmstatus read (the step-2 exit), graphically

phase2c phase2c

2. Testbench — `DebugSwdDmTest`

DUT = SwdDmTestTop: the full transport + a real DebugModule (version 2, 1 hart, progBufSize=2, datacount=1) with a stubbed DebugHartBus — running, never halted, hartToDm/resume.rsp idle.
Two genuinely asynchronous clocks: the shared SwdHostDriver bit-bangs SWCLK (bench-owned, via a ClockDomain handle over the pin) while dut.clockDomain free-runs via forkStimulus — DMI completion latency is variable by construction.
Host-style retry helpers: apWriteRetry/apReadRetry/rdbuff retry on WAIT with bounded attempts — the same loop a real OpenOCD target would run. dmiRead/dmiWrite compose them into DMI operations.
Failure forensics built in: on any unexpected ACK the harness reads CTRL/STAT and includes the sticky flags in the assertion message (ackCheck) — this is what cracked the phantom-completion bug (§4.2). The sim(name, seed = …) hook pins a failing seed for deterministic reproduction.

3. What each test verifies

#	Test	Verifies
1	DPIDR reads through the assembled transport	The full stack elaborates and runs: BOOT-domain phy, async clocks, fiber-style wiring — and the plain DP path still works.
2	AP IDR via posted read	Gateway local completion path + 2B posted-read plumbing end-to-end (`AP_IDR` lands in RDBUFF).
3	DMI_ADDR write and readback	The address latch: AP write commits (WDATA path through the gateway), AP read returns it.
4	dmstatus read over SWD — step 2 exit criterion	The headline: `DMI_ADDR←0x11`, `DMI_DATA` read crosses to the DM and back; RDBUFF poll returns dmstatus with `version=2` and `authenticated=1`.
5	dmcontrol dmactive write and readback	Full DMI write path into a real DM register (resets 0, reads back 1) — write launch at commit, crossed completion, subsequent read.
6	abstractauto write and readback	A second, WARL-masked DM register round-trip (`0x18`, bits [0]/[17:16]) including clearing. (data0/progbuf cannot round-trip with a stubbed hart — see §4.3.)
7	POSTED_READ returns the last DMI read result	The gateway's `lastRead` alias agrees with RDBUFF after a completed DMI read.

WAIT responses are exercised implicitly on nearly every test by the retry helpers (the async completion latency makes WAIT occur naturally); FAULT-on-rsp.error was unit-tested in the 1b suite (the real DM's factory never raises error).

4. Verification

cd ~/fpga/pythondata-cpu-vexriscv-smp/pythondata_cpu_vexriscv_smp/verilog/ext/VexRiscv
sbt -batch "testOnly vexriscv.DebugSwdDmTest"
# expect: Tests: succeeded 7, failed 0, canceled 0, ignored 0, pending 0
sbt -batch "testOnly vexriscv.DebugSwdTest vexriscv.DebugSwdDpTest vexriscv.DebugSwdDmTest"
# expect: Tests: succeeded 25, failed 0, canceled 0, ignored 0, pending 0

5. Summary

Phases 2A–2C complete the target-side RTL of the SWD plan; the DebugBus now speaks SWD end-to-end in simulation.
